Feed pellet mill is used to process livestock, poultry and aquatic feed pellets. It can both be utilized by farm owners and those who want to make feed pellets for sale.
1. Raw Materials Feed Pellet Mill can Process
Maize/corn, soybean meal/cake, wheat bran, bone powder, alfalfa, grass, corn stalk, grain, fish powder, and other nutrition additives.
2. Animals Needs Feed Pellets
Chicken, rabbit, cow, sheep, goat, cattle, pig, goose, duck, pigeon, fish, shrimp, etc.
3. Feed Pellet Mill Capacity Range
Small feed pellet mill: 60-800kg/h per set; Large feed pellet mill: 1-10T/h per set.

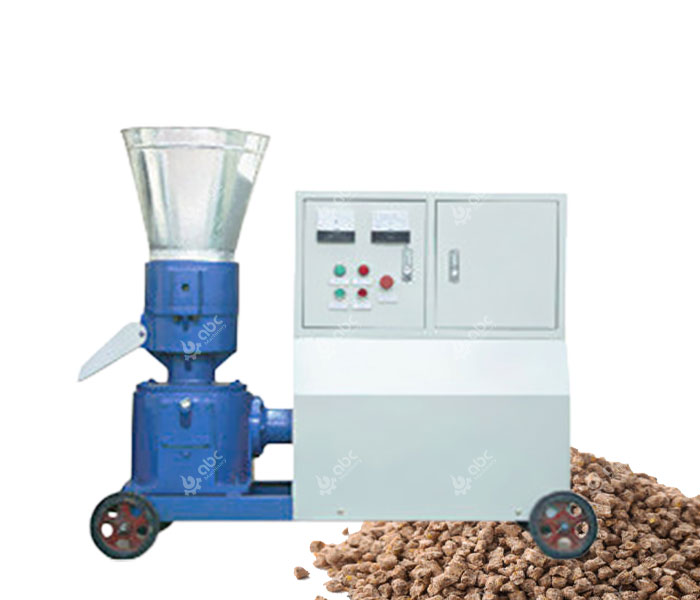

Small Feed Pellet Machine at Factory Price
Small feed pellet machine is generally a type of flat die pellet mill that is relatively small in the output capacity when compared to large scale feed pellet machine. It can be used for farm use, home use or business use. More important, this animal feed pellet mill price is cheap, ranging from a few hundred dollars to a few thousand dollars. For detailed feed processing machine price, please contact us to confirm the latest price!

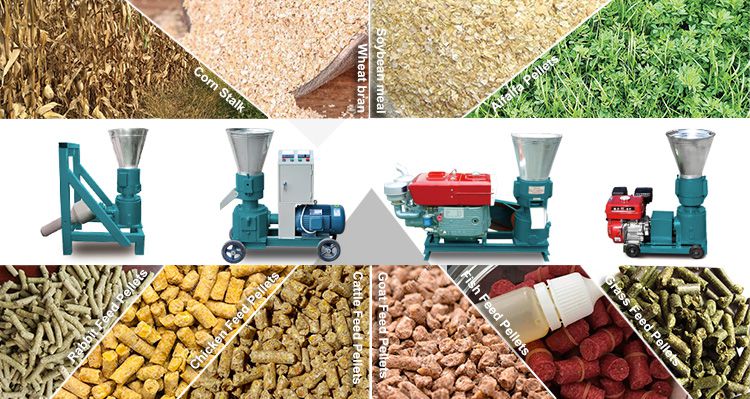

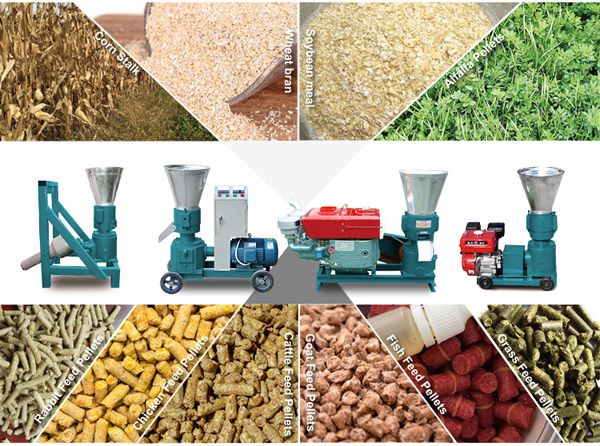

4 Types Small Feed Pellet Mill
Technical Parameter of Small Capacity Animal Feed Mill with Electric Motor
| Type | Power | Output | G.W. | Package size |
|---|---|---|---|---|
| ZLSP 120B | Three phase 3kw | 60-100 kg/h | 77 kg | 800*320*740 mm |
| ZLSP 150B | Three phase 4kw | 90-120 kg/h | 100 kg | 800*350*740 mm |
| ZLSP 200B | Three phase 7.5kw | 200-300 kg/h | 204 kg | 1050*480*990 mm |
| ZLSP 230B | Three phase 11kw | 300-400 kg/h | 218 kg | 1180*520*1020 mm |
| ZLSP 260B | Three phase 15kw | 400-600 kg/h | 300 kg | 1240*540*1070 mm |
| ZLSP 300B | Three phase 22kw | 600-800 kg/h | 437 kg | 1300*560*1220 mm |
Note: for diesel engine, PTO or gasoline engine driven feed pellet mills, pls contact us directly.
What Features does Flat Die Feed Pellet Mill Have?
High Quality Dies and Roller of Small Feed Pellet Mill
- Low cost, convenient operation and maintenance.
- All parts are made from wear-resisting materials and processed by advanced facilities.
- It covers a small area, High yield, energy-saving and environmental friendly.
- Various power sources are available: electric motor, diesel engine, PTO, gasoline engine, you can choose according to your own needs.
Setup Small Scale Feed Pellet Plant with Small Feed Mill
Small Scale Animal Feed Production Factory

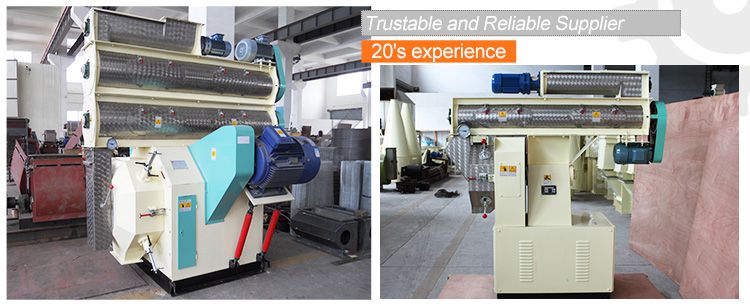

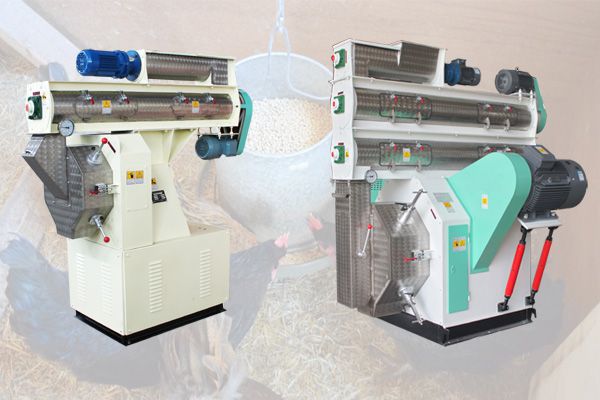

Large Feed Pellet Mill for Sale
BPM series ring die feed pellet mill is the main large scale animal feed pellet machine which is independently developed and designed by ABC Machinery. It is mainly composed of feeders, conditioner, pelletizing chamber, lubricating system, etc. It is widely used for large capacity feed pellets production of animal feed processing plant. (Read more: Ring Die Pellet Mill for Sale >>)
Large Capacity Animal Feed Pellet Mill
Technical Data of Ring Die Feed Pellet Mill
| Model | BPM250 | BPM320 | BPM350 | BPM420 |
|---|---|---|---|---|
| Capacity | 1.0~2.0 t/h | 2.0~5.0 t/h | 3.0~7.0 t/h | 6.0~10.0 t/h |
| Main Motor Power | 11*2 kw | 22*2 kw | 30*2 kw | 55*2 kw |
| Feeding Motor Power | 0.75 kw | 0.75 kw | 0.75 kw | 0.75 kw |
| Conditioner motor power | 2.2 kw | 2.2 kw | 2.2 kw | 5.5 kw |
| Diameter of Ring Die | 250 mm | 320 mm | 350 mm | 420 mm |
| Diameter of Final Feed Pellets | 2~10 mm | 2~10 mm | 2~10 mm | 2~10 mm |
Large feed pellet mill is seldomly utilized singlely. ABC Machinery has built many large feed pellet plants overseas. If you need a large feed pellet making plant, pls contact us now!

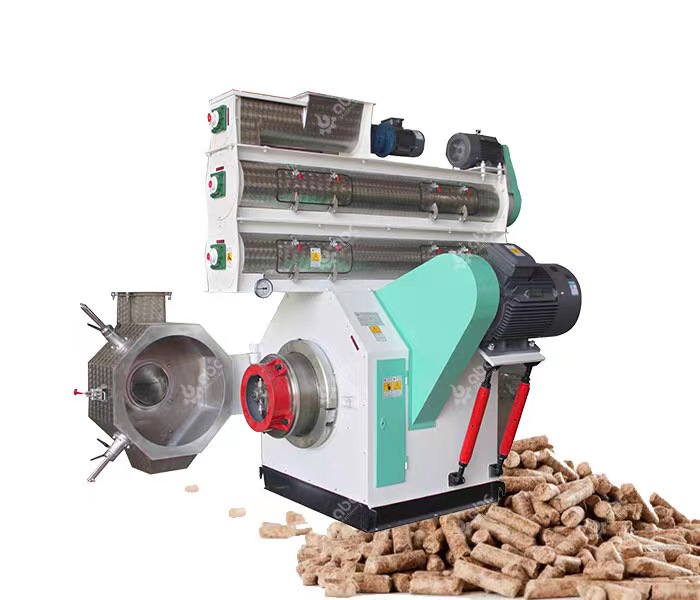

Buy Ring Die Feed Pellet Mill for Commercial Feed Processing Business

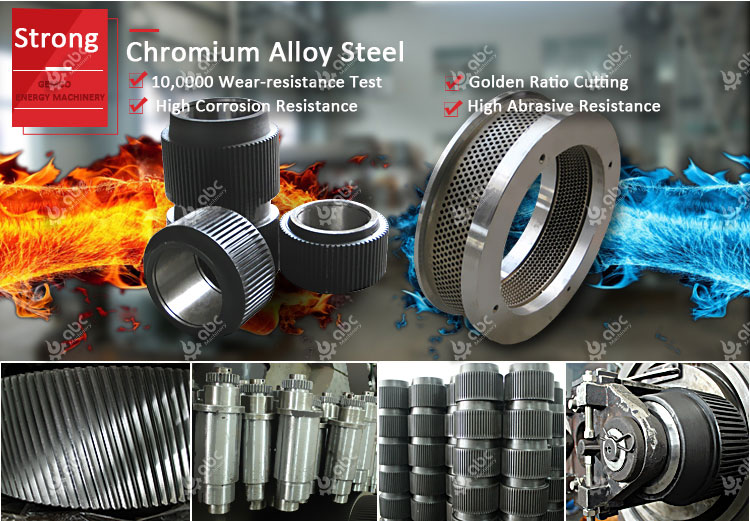

Spare Parts of Ring Die Feed Pellet Machine
- Ring die pellet mill is really excellent in feed processing, especially for concentrated feed.
- It has large output and has less power consumption.
- It is very suitable for the setup of commercial complete feed pellet mill plant.
Large Feed Pellet Plants Built by ABC Machinery

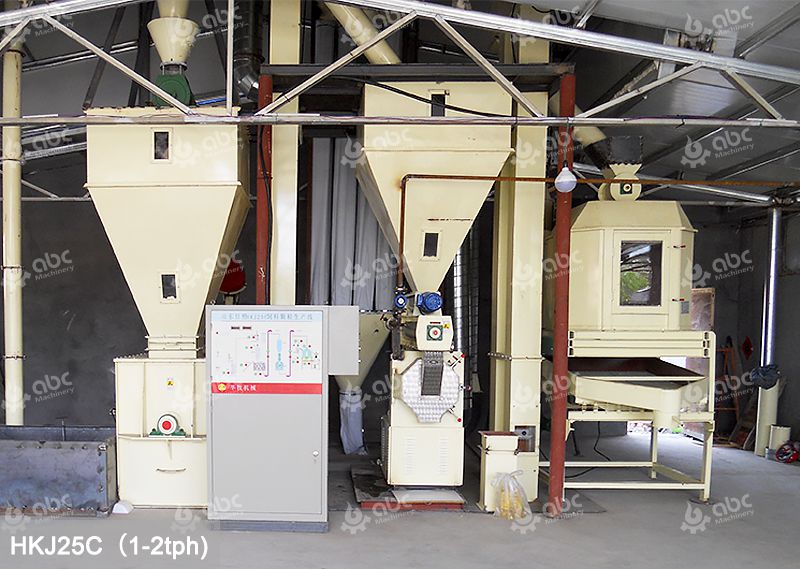

Animal Feed Making Machine

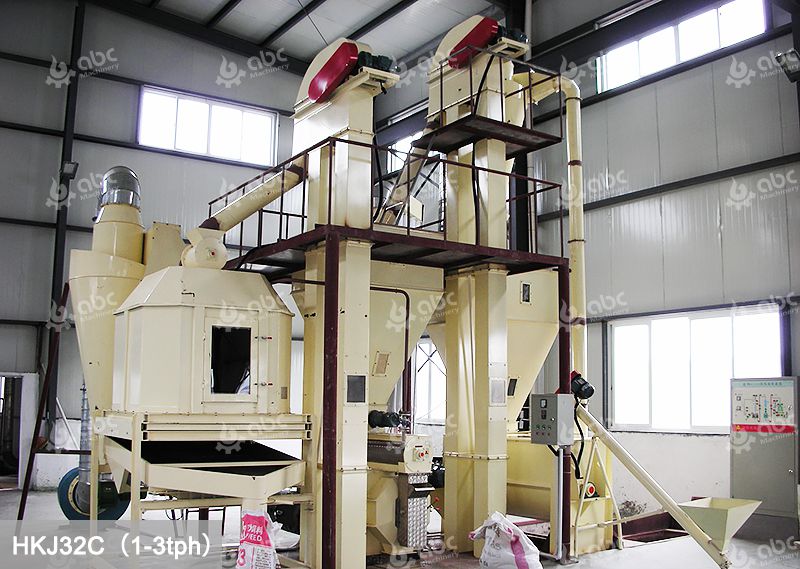

Large Feed Pellet Plant

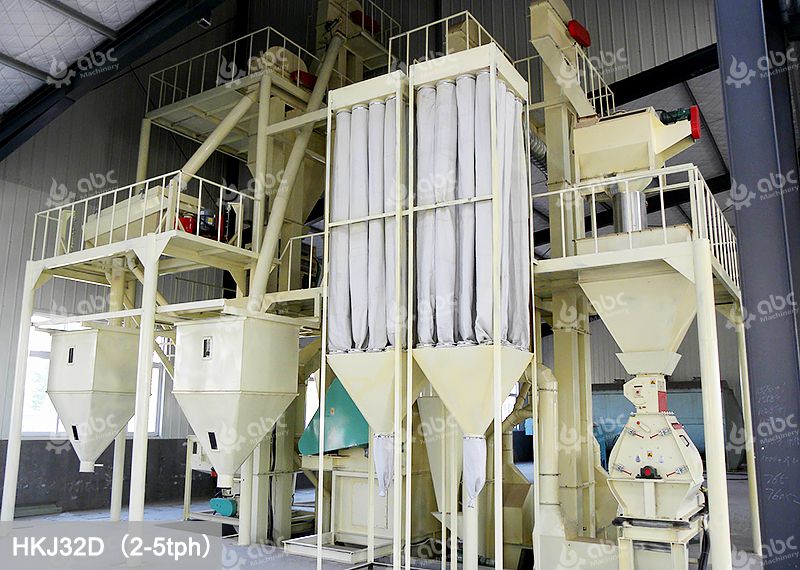

Commercial Feed Pellet Plant for Various Animal Feed
Animal Feed Pellet Mill for Sale
Animal feed pellet mill factory price - hot sale feed pellet mill offered by ABC machinery: buy feed pellet mill from animal feed processing equipment manufacturer or supplier at factory price, get FREE technical instruction of animal feed production process and business plan to set up feed mill project in Kyrgyzstan, Pakistan, Bangladesh, Uzbekistan, Saudi Arabia, etc., at low cost.
